◎ 產品特色 Product features
◆ 價格便宜
◆ 操作簡單方便
◆ 精度高，性能好
◆ 用途范圍廣
◆ Cheap price
◆ Easy and convenient operation
◆ High precision and great performance
◆ Wide range of applications
◎ 產品概述 Product overview
◆本模塊是本公司最新研制成功的采用微處理器和功率MOS 管的 PWM 的直流電機調速模塊 . 具有過流 ,過壓保護功能和多種輸入控制方式 , 調整范圍寬 , 工作穩定可靠 . 廣泛應用于紡織機械 , 化工機械 , 食品機械中需要對電機進行無級調速的場合。
◆ This module with microprocessor and power MOS tube is the latest PWM DC motor speed control module developed by our company, with features like over-current protection, over-voltage protection, multiple input control methods, stable and reliable operation, and wide adjustment range. This module is widely used in applications that require stepless speed regulation of motors, such as textile machinery, chemical machinery, food machinery, etc.

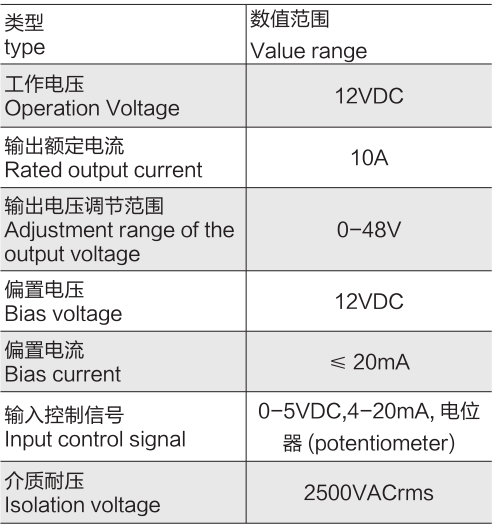

◎ 主要技術指標
Main parameters

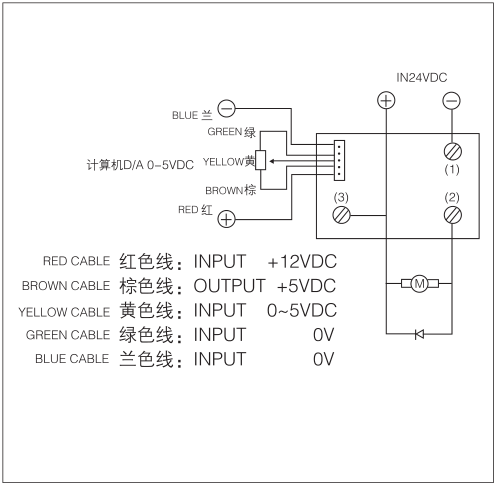

◎ 接線圖 The wiring diagram

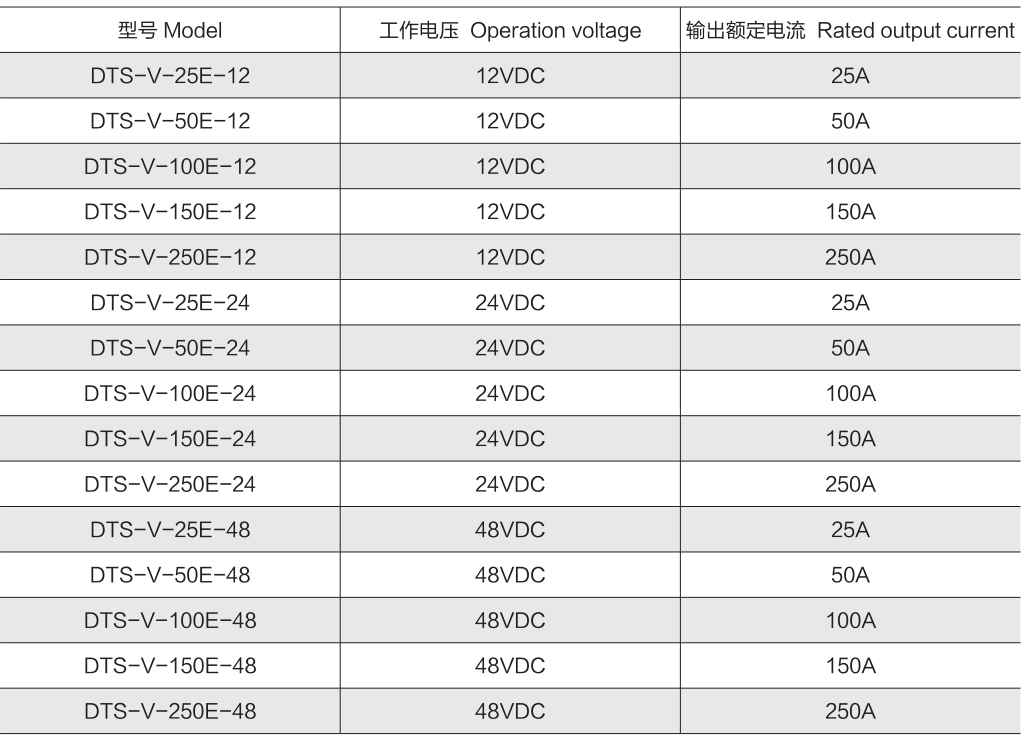

◎ 產品特性 Product Specifications
Note: Various current and voltage specifications can be customized according to different requirements.
E Type: 0-5V
G Type: 4-20V
◎ 注意事項 Notice
1. 使用感性負載時, 請務必在輸出端并接一個續流二極管。
2.5A 以上的調壓器要求加散熱器 , 電流 10A 以上時 , 請采用風冷。
1.When the load is an inductive load, be sure to connect a freewheeling diode in parallel with the output terminal.
2.If the load current is above 5A, a heat sink must be provided; if the load current exceeds 10A, an air-cooled radiator must be installed.
