◎ 產品特點 Product Features
◆ 多功能 LED 指示工作狀態。
◆ 自帶保護功能，內置快速熔斷器。
◆ 最大輸出量、最小輸出量可調。
◆ 線性移相控制電路，穩定性好，精度高。
◆ 模塊化，耐高壓，更安全可靠。
◆ Multi-function LED status
◆ Built-in fast fuse protection function
◆ Adjustable maximum output and minimum output
◆ Linear phase-shift control circuit with good stability and high precision
◆ Modularization with high pressure resistant, safer and more reliable
◎ 產品參數 Product Parameters
◆ 額定電壓 : 三相 380VAC( 三相三線 )
◆ 額定電流：40A,65A,75A,90A,100A,120A, 150A
◆ 操作頻率：50Hz/60Hz
◆ 輸出方式：相位輸出
◆ 控制信號：4-20mA， 0-5VDC, 0-10VDC
◆ 保護功能：快速熔斷器
◆ 使用環境：溫度 45℃以下，濕度 90%RH 以下
◆ Rated Voltage: Three phase 380VAC (three-phase three-wire)
◆ Rated Current: 40A,65A,75A,90A,100A,120A, 150A
◆ Operation Frequency: 50Hz/60Hz
◆ Output mode: phase output
◆ Control signal: 4-20mA， 0-5VDC, 0-10VDC
◆ Protection function: Fast fuse
◆ Operating environment: Ambient temperature below 45 ℃ , ambient humidity below 90% RH
◎ 注意事項 Notice
1. 主電路中采用三相三線輸入，無相序要求。
2.SCR為大電流產品，請務必鎖緊（R.S.T）及（U.V.W）端子，否則會造成端子發熱而導致 SCR 燒壞。
3.SCR 內置快速熔斷器 , 作為過電流及短路保護 . 如果熔斷器因過流而熔斷時 , 請務必使用相同規格的熔斷器予以更換, 注意千萬不可任意加大熔斷器的安倍數。
4. 負載 Y 型接法時中性點不能接零線 , 否則會造成SCR 失去控制 .
5. 模塊在使用時，如果負載功率大或散熱條件不好，請考慮風冷。
1. The input circuit of the main circuit adopts three-phase three-wire connection, no phase sequence requirement.
2.SCR is a high current component, so please be sure to tighten the (R, S, T) and (U, V, W) erminals, otherwise it will heat up the terminals and then burn out the SCR.
3.SCR has a built-in fast fuse for overcurrent and short-circuit protection. If the fuse is blown due to overcurrent, be sure to replace it with a fuse of the same specification. Please do not increase
Amps of the fuse arbitrarily!
4.If the load adopts Y-connection, the neutral point cannot be connected to the neutral line, otherwise the SCR will lose control.
5. If the load power is too high or the heat dissipation is not good, consider air cooling device to cool down the module.

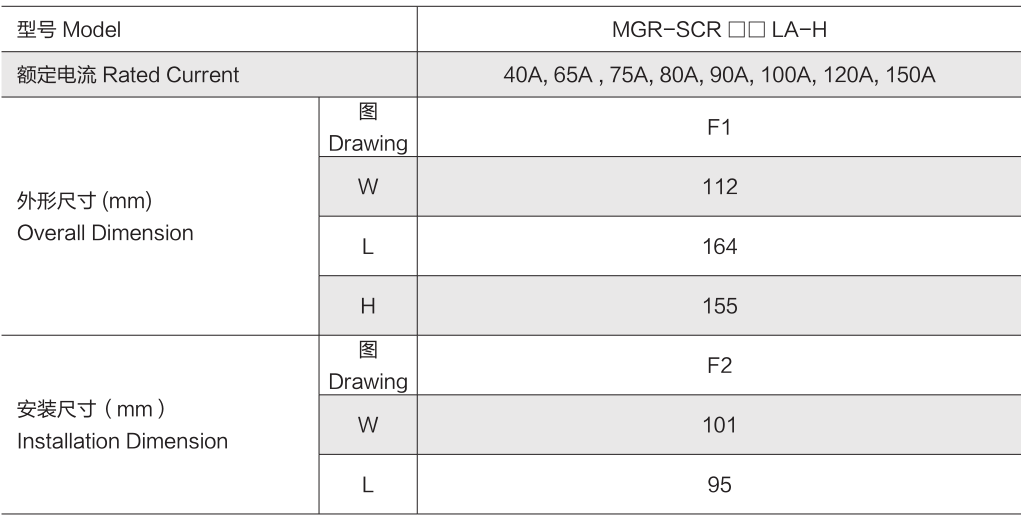

◎ 產品規格 Product Specifications
◎ 安裝尺寸及接線圖 Installation dimensions and wiring diagram
